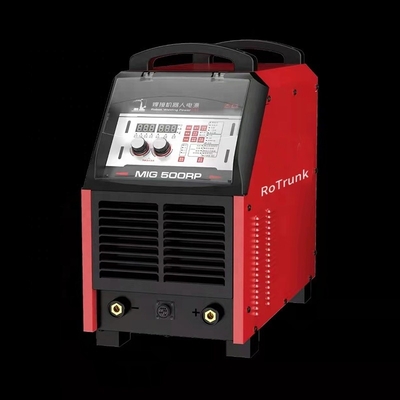

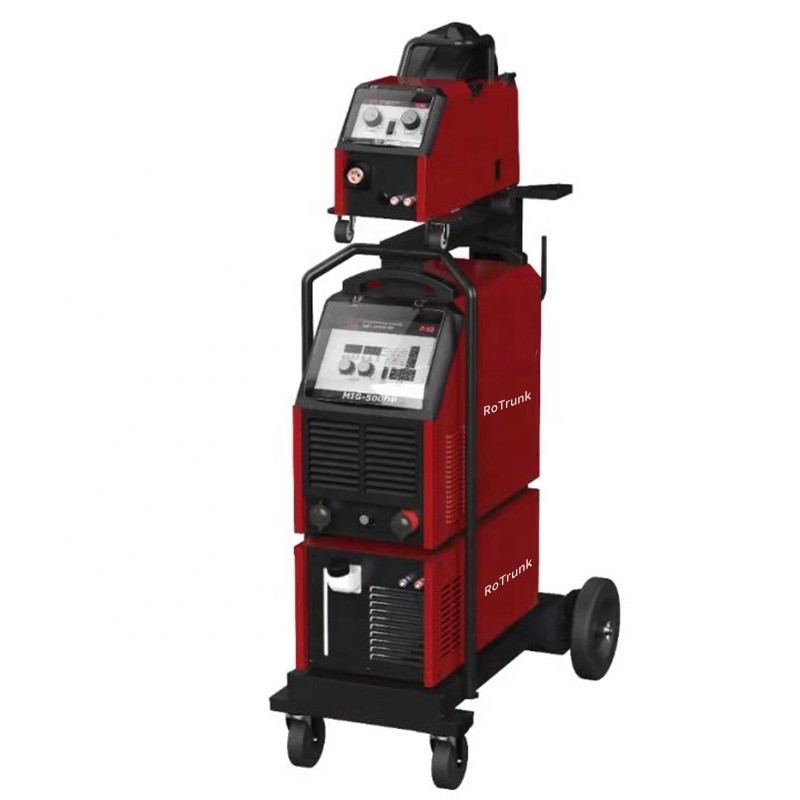

Heavy Duty Electric Welding Machine 500Amp Mig Pulse Welding MIG-500DP with Wire Feeder
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $3,201.00/pieces 10-99 pieces |
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel Stainless Steel Aluminium Alloy | Rated Input Voltage: | 380 V |
|---|---|---|---|
| Wire Melting Type: | Spray Transfer | Max. Load Power Capacity: | MIG:24KVA / MMA:25KVA |
| Rated Output Current (MIG): | 500 A | Rated Output Voltage (MIG): | 50 V |
| Rated Duty Cycle @40°C (MIG): | 500A:60% /400A:100% | Wire Feeding Speed: | 22 M/min |
| Condition: | New | Dimensions: | 645*325*595 Mm |
| Use: | Welding | Weight (KG): | 40 KG |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Welding | Machinery Test Report: | Provided, Provided |
| Video Outgoing-inspection: | Provided | Feature: | Wire Feeder |
| Product Name: | Dual Pulse MIG Welding Machine | Accessories: | Wire Feeder+torch+cable |
| Technology: | IGBT Inverter | Application: | MIG Welding+MMA Welding |
| Suitable Wire Diameter: | 1.0~.16 Mm | Rated Duty Cycle: | 80% |
| After-sales Service Provided: | Video Technical Support, Online Support | ||
Product Description
Product Description
Product Description:
■All digital intelligent control
■High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control.
■Stable arc, more regular droplet transfer, less spatter and small non-stick welding parts, good welding seam, low labor and cleaning costs, extended nozzle life;
■Dual pulse, synergical control for perfect fish scale welding and high welding quality;
■Friendly for generator and is suitable for field construction.
■Intelligent comprehensive power protection for durable operation life.
■All digital intelligent control
■High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control.
■Stable arc, more regular droplet transfer, less spatter and small non-stick welding parts, good welding seam, low labor and cleaning costs, extended nozzle life;
■Dual pulse, synergical control for perfect fish scale welding and high welding quality;
■Friendly for generator and is suitable for field construction.
■Intelligent comprehensive power protection for durable operation life.

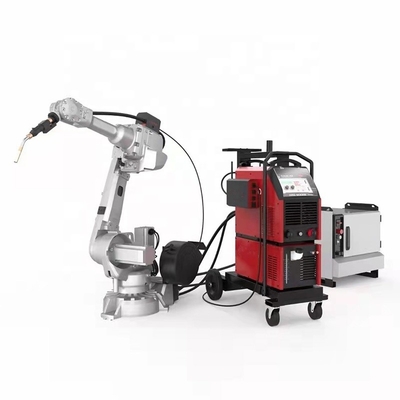

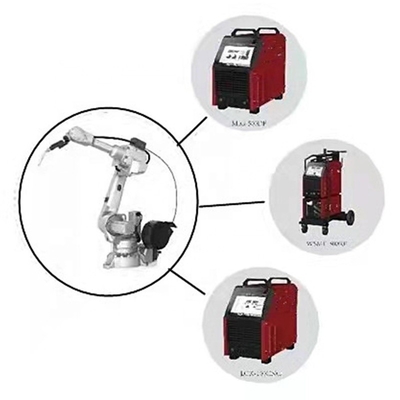

High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control
Effect display of aluminum sample MIG double pulse welding
Effect of MIG pulse welding on carbon steel samples
Specification
item | value |
Material / Metal Processed | Carbon steel Stainless steel Aluminium alloy |
Rated Voltage | 380V |
Wire Melting Type | Spray Transfer |
Max. Load Power Capacity | MIG:24KVA / MMA:25KVA |
Rated Output Current (MIG) | 500 A |
Rated output voltage | 50V |
Rated Duty Cycle @40°C (MIG) | 500A:60% /400A:100% |
Wire Feeding Speed | 22m/min |
Condition | New |
Place of Origin | China |
Dimensions | 645*325*595 mm |
Usage | Welding |
Weight | 40KG |
Warranty | 1 Year |
Key Selling Points | Long Service Life |
Applicable Industries | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, welding |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Feature | Wire Feeder |
Product name | Dual Pulse MIG Welding Machine |
Accessories | Wire feeder+torch+cable |
Technology | IGBT Inverter |
Application | MIG Welding+MMA Welding |
Suitable Wire Diameter | 1.0~.16 mm |
Rated Duty cycle | 80% |
Machinery Test Report | Provided |
After-sales Service Provided | Video technical support, Online support |
