High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control
 |

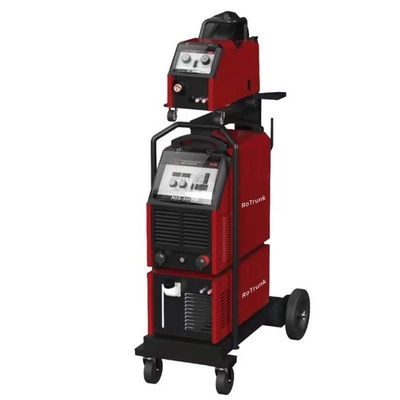

Aluminum Welding Machines MIG-500DP IGBT Inverter Double Pulse MIG Welder 500A with Accessories
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $3,201.00/pieces 10-99 pieces |
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel Stainless Steel Aluminium Alloy | Rated Input Voltage: | 380 V |
|---|---|---|---|
| Wire Melting Type: | Globular Transfer | Max. Load Power Capacity: | MIG:24KVA / MMA:25KVA |
| Rated Output Current (MIG): | 500A | Rated Output Voltage (MIG): | 50 V |
| Rated Duty Cycle @40°C (MIG): | 500A:60% /400A:100% | Wire Feeding Speed: | 22 M/min |
| Condition: | New | Dimensions: | 645*325*595 Mm |
| Use: | Welding | Weight (KG): | 40 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction Works | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Feature: | Wire Feeder, Multi-prpcess |
| Product Name: | MIG Welding Machine | Accessories: | Wire Feeder+torch+cable |
| Technology: | IGBT Inverter | Application: | MIG Welding+MMA Welding |
| Rated Duty Cycle: | 80% | Suitable Wire Diameter: | 1.0mm,1.2mm,1.6mm |
| After-sales Service Provided: | Video Technical Support, Online Support | Supply Ability: | 500 Unit/Units Per Month |
Product Description
Product Description
Product Description:
1.All digital intelligent control

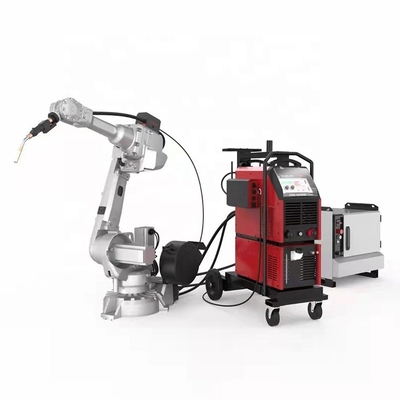

2.High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control.
3.Stable arc, more regular droplet transfer, less spatter and small non-stick welding parts, good welding seam, low labor and cleaning costs, extended nozzle life;
4.Dual pulse, synergical control for perfect fish scale welding and high welding quality;
5.Friendly for generator and is suitable for field construction.
6.Intelligent comprehensive power protection for durable operation life.
1.All digital intelligent control
2.High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control.
3.Stable arc, more regular droplet transfer, less spatter and small non-stick welding parts, good welding seam, low labor and cleaning costs, extended nozzle life;
4.Dual pulse, synergical control for perfect fish scale welding and high welding quality;
5.Friendly for generator and is suitable for field construction.
6.Intelligent comprehensive power protection for durable operation life.
Effect display of aluminum sample MIG double pulse welding
Effect of MIG pulse welding on carbon steel samples
Specification
item | value |
Material / Metal Processed | Carbon steel Stainless steel Aluminium alloy |
Rated Input Supply Voltage | 380V |
Wire Melting Type | Globular Transfer |
Max. Load Power Capacity | MIG:24KVA / MMA:25KVA |
Rated Output Current (MIG) | 500A |
Rated output voltage | 50V |
Rated Duty Cycle @40°C (MIG) | 500A:60% /400A:100% |
Wire Feeding Speed | 22m/min |
Condition | New |
Place of Origin | China |
Brand Name | RoTrunk |
Dimensions | 645*325*595 mm |
Usage | Welding |
Weight | 40KG |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Applicable Industries | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Feature | Wire Feeder |
Product name | MIG Welding Machine |
Accessories | Wire feeder+torch+cable |
Technology | IGBT Inverter |
Application | MIG Welding+MMA Welding |
Feature | Multi-prpcess |
Rated Duty Cycle | 80% |
Suitable Wire Diameter | 1.0mm,1.2mm,1.6mm |
After-sales Service Provided | Video technical support, Online support |
Supply Ability | 500 Unit/Units per Month |
