Power devices are composed entirely of modular components, features a masterpiece of high stability
 |
Multi-process Digital IGBT Inverter Welding Cutting Station Welder for Welding and Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $875.00/pieces >=10 pieces |
|
Detail Information |
|||
| Rated Input Voltage: | 380V | Rated Duty Cycle @40°C: | 60% |
|---|---|---|---|
| Max. Load Power Capacity: | 25KVA | Rated Output Voltage: | 39 V |
| Rated Output Current: | 500 A | Welding Current/Voltage Range: | 50~450A/16~45V |
| Condition: | New | Pulse Frequency: | 50/60 HZ |
| Motor Type: | DC MOTOR | Dimensions: | 38*15*30 |
| Use: | Welding And Cutting Metals | Weight (KG): | 55 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Feature: | INVERTER, Multi-prpcess |
| Product Name: | Cutting And Welding Machine | Accessories: | Wire Feeder+torch+cable |
| Efficiency: | 88% Inverter Welders | Technology: | IGBT Inverter |
| Application: | MIG Welding+plasma Cutting | Rated Duty Cycle: | 80% |
| Suitable Wire Diameter: | 0.8mm,1.0mm,1.2mm,1.6mm | After-sales Service Provided: | Video Technical Support, Online Support |
| Supply Ability: | 500 Unit/Units Per Month | ||
Product Description
Product Description

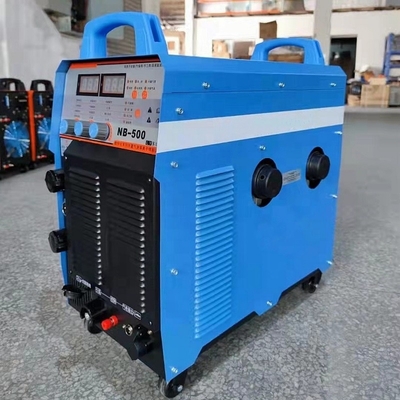

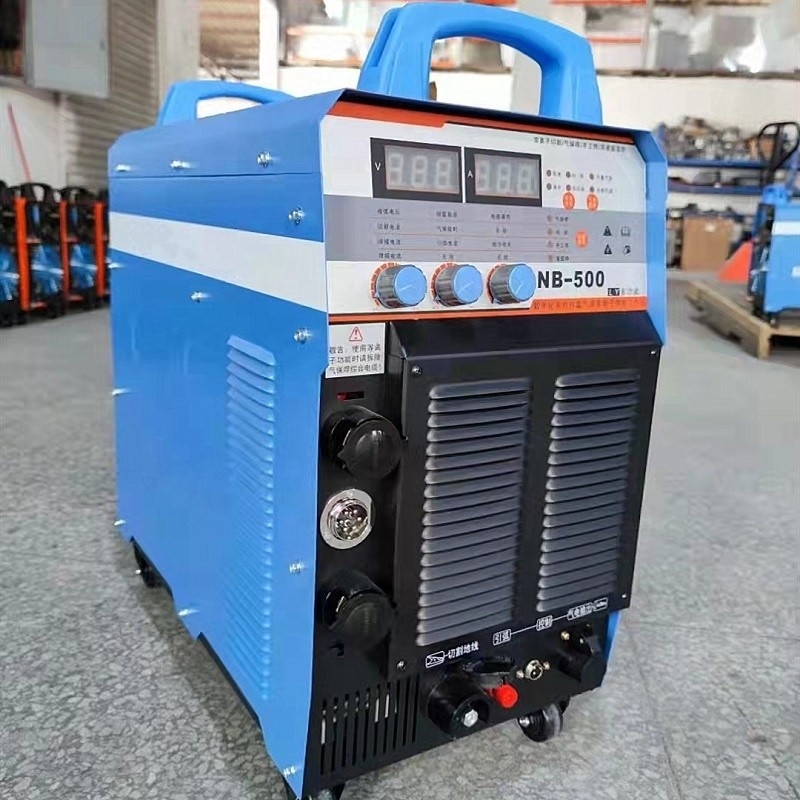

NB-500LY，which it is a machine with 5 in 1 of gas shield MIG Welding, built-in air plasma and external air plasma cutting, MMA welding, TIG welding.MIlti process of 5 in 1
Available for cutting of untreated metal of rustry and painted, and automatic are piloting for special shape workpiece.
Power generator friendly,good for field construction no need to worry about power supply.
Specification
item | value |
Rated Input Voltage | 380V |
Rated Duty Cycle @40°C | 60% |
Max. Load Power Capacity | 25KVA |
Rated Output Voltage | 39V |
Rated Output Current | 500 A |
Output current regulation range/Output voltage regulation range | 50~450A/16~45V |
Condition | New |
Place of Origin | China |
Brand Name | RoTrunk |
50/60 HZ | |
Motor Type | DC MOTOR |
Dimensions | 560X290X530 mm |
Usage | Welding and cutting metals |
Weight | 55KG |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Applicable Industries | Building Material Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Feature | INVERTER |
Product name | Cutting And Welding Machine |
Accessories | Wire feeder+torch+cable |
Efficiency | 88% Inverter Welders |
Technology | IGBT Inverter |
Application | MIG Welding+plasma cutting |
Feature | Multi-prpcess |
Rated Duty Cycle | 80% |
Suitable Wire Diameter | 0.8mm,1.0mm,1.2mm,1.6mm |
After-sales Service Provided | Video technical support, Online support |
Supply Ability | 500 Unit/Units per Month |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Always a pre-production sample before mass production; Always final Inspection before shipment;
4. Payment:
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
5.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
6.what services can we provide?
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
