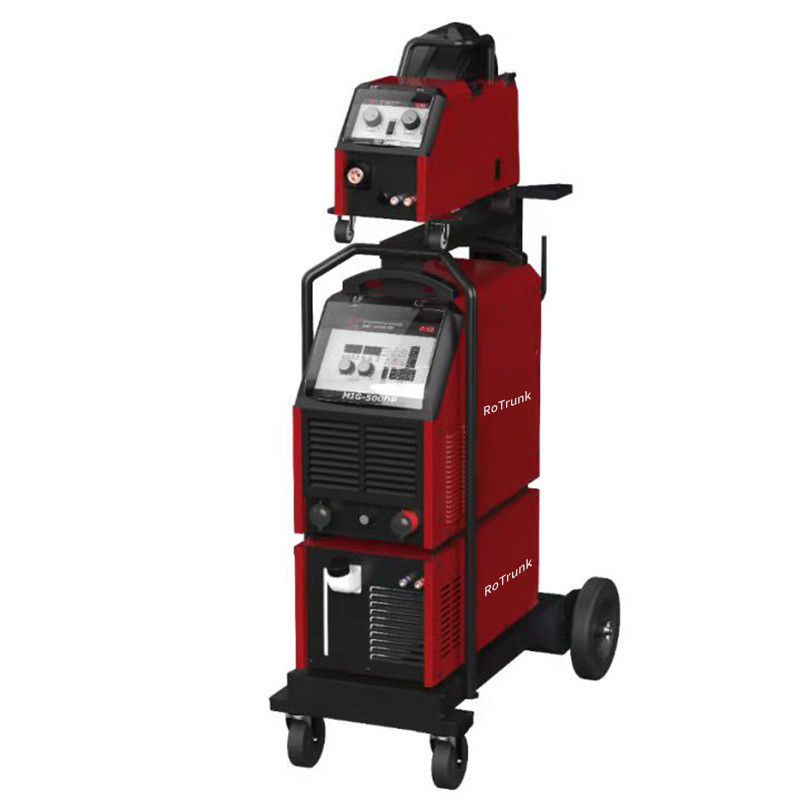

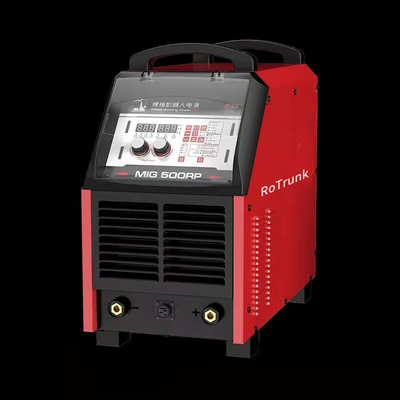

500A Dual Pulse Inverter Welding Machines MIG500DP For Stainless And Aluminum Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $3,201.00/pieces 10-99 pieces |
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel ,Stainless Steel ,Aluminium Alloy | Rated Input Voltage: | 379 V |
|---|---|---|---|
| Wire Melting Type: | Spray Transfer | Max. Load Power Capacity: | MIG:24KVA MMA:25KVA |
| Rated Output Current (MIG): | 500A | Rated Output Voltage (MIG): | 50 V |
| Welding Current/Voltage Range: | 20~500A/14V ~50V | Rated Duty Cycle @40°C (MIG): | 500A:60% 400A:100% |
| Wire Feeding Speed: | 22 M/min | Condition: | New |
| Dimensions: | 645*325*595 Mm | Use: | Intelligent Control Of High-end Welding |
| Weight (KG): | 40 KG | Warranty: | 1 Year |
| Key Selling Points: | Intelligent Control | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Aerospace, Locomotive Manufacturing And Maintenance, Shipbuilding And Maintenance, Power Engineering |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Feature: | Wire Feeder | Protection Level: | IP21S |
| Insulation Class: | F | Frequency: | 50/60HZ |
| Rated Output Voltage: | 14V~50V(MIG) | Power Factor: | 0.9 |
| Suitable Wire Diameter: | 1.0mm, 1.2mm, 1.6mm | Efficiency: | ≥85% |
| After-sales Service Provided: | Video Technical Support, Online Support | Supply Ability: | 500 Unit/Units Per Month |
Product Description
Product Description
Product Description:
1.All digital intelligent control.

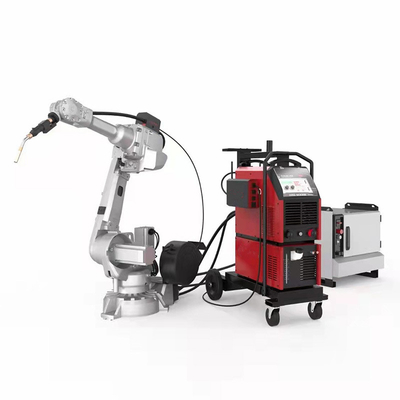

2.High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control.
3.Stable arc, more regular droplet transfer, less spatter and small non-stick welding parts, good welding seam, low labor and cleaning costs, extended nozzle life;
4.Dual pulse, synergical control for perfect fish scale welding and high welding quality;
5.Friendly for generator and is suitable for field construction.
6.Intelligent comprehensive power protection for durable operation life.
3.Stable arc, more regular droplet transfer, less spatter and small non-stick welding parts, good welding seam, low labor and cleaning costs, extended nozzle life;
4.Dual pulse, synergical control for perfect fish scale welding and high welding quality;
5.Friendly for generator and is suitable for field construction.
6.Intelligent comprehensive power protection for durable operation life.
High technology of over 100 welding process for option, directly connected with the welding robot synergical collaborative control.
Effect display of aluminum sample MIG double pulse welding
Effect of MIG pulse welding on carbon steel samples
Specification
item | value |
Material / Metal Processed | Carbon steel ,Stainless Steel ,Aluminium alloy |
Rated Input Supply Voltage | 380V |
Wire Melting Type | Spray Transfer |
Max. Load Power Capacity | MIG:24KVA MMA:25KVA |
Rated Output Current (MIG) | 500A |
Rated Duty Cycle @40°C (MIG) | 500A:60% 400A:100% |
Wire Feeding Speed | 22m/min |
Condition | New |
Place of Origin | China |
Brand Name | RoTrunk |
Dimensions | 645*325*595 mm |
Usage | Intelligent control of high-end welding |
Weight | 40KG |
Warranty | 1 Year |
Key Selling Points | Intelligent Control |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Aerospace, Locomotive manufacturing and maintenance, Shipbuilding and maintenance, Power Engineering |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Feature | Wire Feeder |
Protection level | IP21S |
Insulation class | F |
Frequency | 50/60HZ |
Rated output voltage | 14V~50V(MIG) |
Power factor | 0.9 |
Suitable Wire Diameter | 1.0mm, 1.2mm, 1.6mm |
Efficiency | ≥85% |
After-sales Service Provided | Video technical support, Online support |
Supply Ability | 500 Unit/Units per Month |
Certification | CE |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2.MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2.MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Always a pre-production sample before mass production; Always final Inspection before shipment;
4. Payment:
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is
contract amount is up to USD 20000. Western Union and Paypal is acceptable.
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is
contract amount is up to USD 20000. Western Union and Paypal is acceptable.
5.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
6.what services can we provide?
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
Want to Know more details about this product
