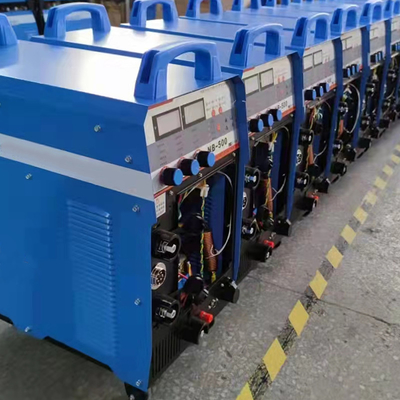

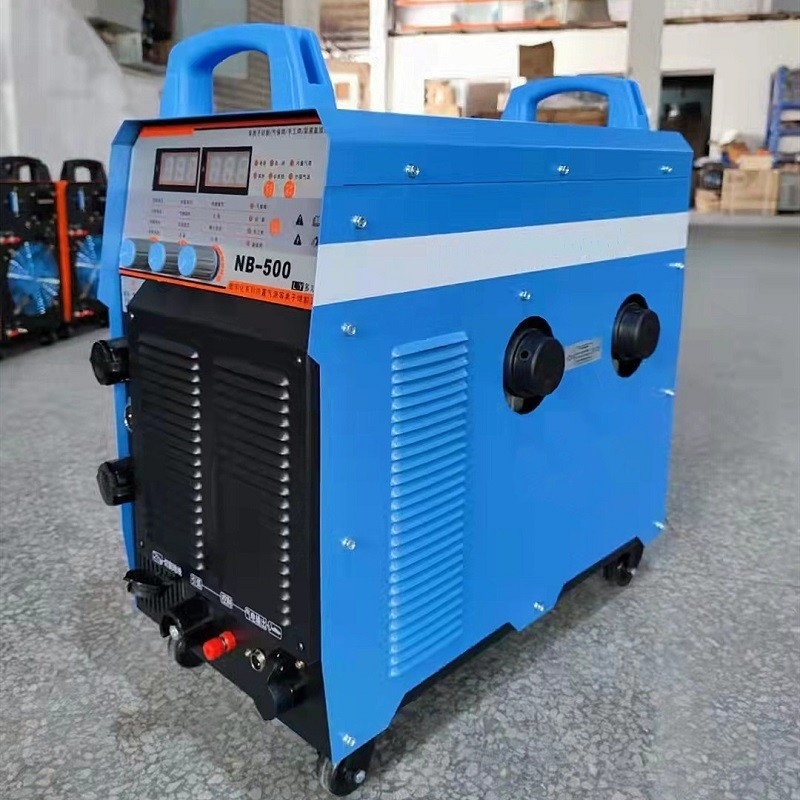

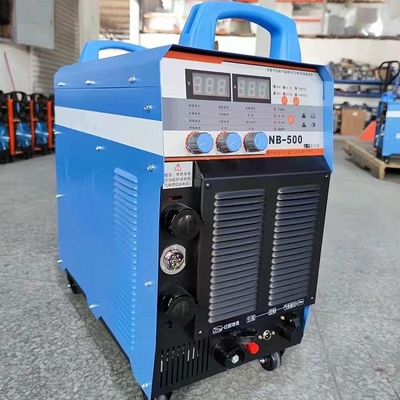

5in1 Multi-Process Digital IGBT Inverter Welding Cutting Station for Metal Fabrication
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Price: | $875.00/pieces >=1 pieces |
|---|
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel Stainless Steel | Rated Input Voltage: | 380 V |
|---|---|---|---|
| Wire Melting Type: | Spray Transfer | Max. Load Power Capacity: | 25.4KVA |
| Rated Output Current (MIG): | 500A | Rated Output Voltage (MIG): | 39 V |
| Rated Duty Cycle @40°C (MIG): | 60% | Wire Feeding Speed: | 22 M/min |
| Condition: | New | Dimensions: | 560X290X530 Mm |
| Use: | Welding And Cutting Ferrous Metals | Weight (KG): | 54 KG |
| Year: | 2022 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Feature: | Wire Feeder | Protection Level: | IP21S |
| Insulation Class: | F | Frequency: | 50/60HZ |
| Max. Cutting Thickness(IA-CUT): | 40mm | Max. Cutting Thickness(OA-CUT): | 45mm |
| Suitable Wire Diameter: | 0.8,1.0,1.2 ,1.6 | Applicable Rod Diameter: | 1.6-5.0mm |
| Function: | MIG,IA-CUT,OA-CUT,MMA,TIG | After-sales Service Provided: | Video Technical Support, Online Support |
Product Description
Product Description
Specification
item | value |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other |
Showroom Location | None |
Wire Melting Type | Spray Transfer |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | Motor, Gear |
Condition | New |
Place of Origin | China |
Brand Name | RoTrunk |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Power (kW) | 25.4KVA |
Weight (KG) | 54KG |
Input Voltage | 380V |
Rated Current | Rated output current 500A |
Dimensions | 560X290X530mm |
Usage | Function:MIG,IA-CUT,OA-CUT,MMA,TIG |
Protection level | IP21S |
Insulation class | F |
Frequency | 50/60HZ |
Quality Cutting Thickness (carbon steel) | 30mm |
Max. Cutting Thickness（built-in air plasma） | 40mm |
Max. Cutting Thickness（outside air plasma | 45mm |
Suitable Wire Diameter | 0.8mm,1.0mm,1.2mm ,1.6mm |
Applicable rod diameter | 1.6-5.0mm |
Adjustment range of Wire Feeding Speed | 1~22 m/min |
Function | MIG,IA-CUT,OA-CUT,MMA,TIG |
Feature | Wire Feeder |
After-sales Service Provided | Video technical support, Online support |
