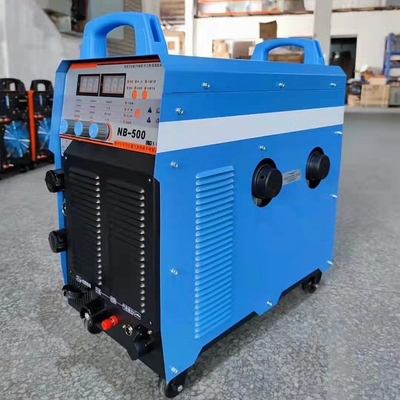

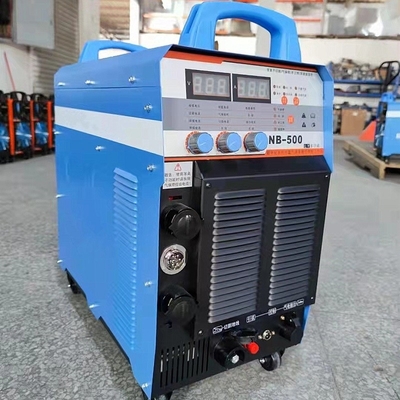

5 In1 MIG/TIG/MMA/CUT Welding Plasma Cutting Station with Spray Transfer 500Amp NB500LY
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Price: | $875.00/pieces >=1 pieces |
|---|
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel Stainless Steel | Rated Input Voltage: | 380 V |
|---|---|---|---|
| Wire Melting Type: | Spray Transfer | Max. Load Power Capacity: | 25KVA |
| Rated Output Current (MIG): | 500A | Rated Output Voltage (MIG): | 39 V |
| Rated Duty Cycle @40°C (MIG): | 60% | Wire Feeding Speed: | 22 M/min |
| Condition: | New | Dimensions: | 560X290X530 Mm |
| Use: | Welding And Cutting Metals | Weight (KG): | 55 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Energy & Mining | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Feature: | Wire Feeder |
| Protection Level: | IP21S | Insulation Class: | F |
| Frequency: | 50/60HZ | Suitable Wire Diameter: | 0.8,1.0,1.2 1.6 |
| Duty Cycle: | 60% | Efficiency: | 88% |
| Power Factor: | 0.92 | Cooling Mode Of Power Supply: | Air Cooling |
| Cooling Mode Of Welding Torch: | Water Cooling | Function: | MIG,IA-CUT,OA-CUT,MMA,TIG |
Product Description
Product Description
Specification
item | value |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | Motor, Gear |
Condition | New |
Place of Origin | China |
Brand Name | RoTrunk |
Warranty | 1 Year |
Key Selling Points | High Productivity |
Power (kW) | 25.4KVA |
Weight (KG) | 54KG |
Input Voltage | 380V |
Rated Current | Rated output current 500A |
Dimensions | 560X290X530mm |
Usage | Welding and cutting ferrous metals |
Protection level | IP21S |
Insulation class | F |
Frequency | 50/60HZ |
Duty Cycle | 60% |
Efficiency | 88% |
Power factor | 0.92 |
Quality Cutting Thickness (carbon steel) | 30mm |
Max. Cutting Thickness（built-in air plasma） | 40mm |
Max. Cutting Thickness（outside air plasma） | 45mm |
Suitable welding electrode | 1.6-5.0mm |
Suitable Wire Diameter | 0.8mm, 1.0mm, 1.2mm, 1.6mm |
Adjustment range of Wire Feeding Speed | 1~22 m/min |
Cooling mode of power supply | Air cooling |
Cooling mode of welding torch | Water cooling |
Function | MIG,IA-CUT,OA-CUT,MMA,TIG |
Feature | Wire Feeder |
