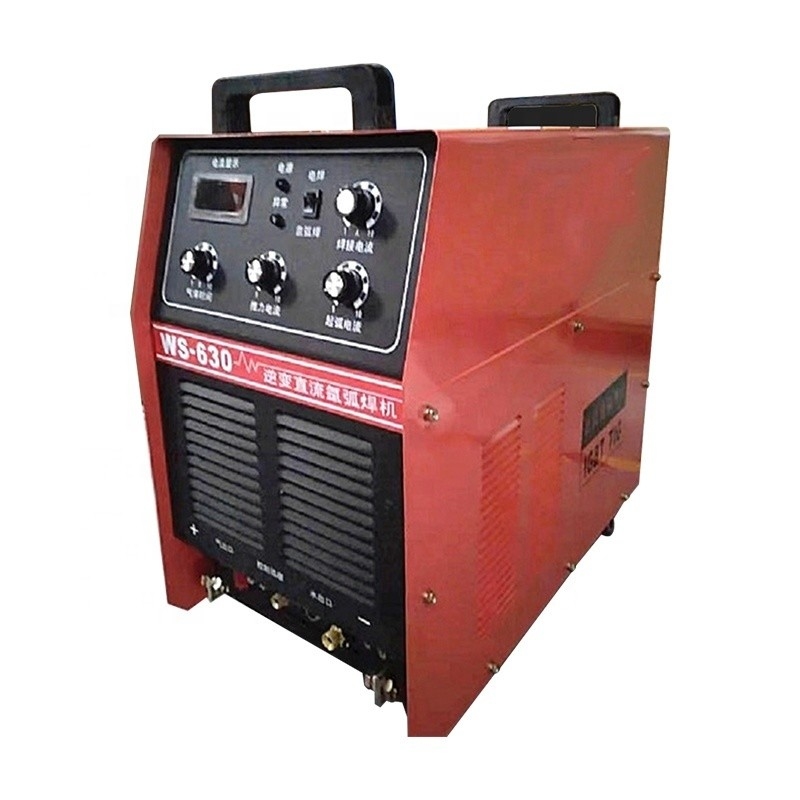

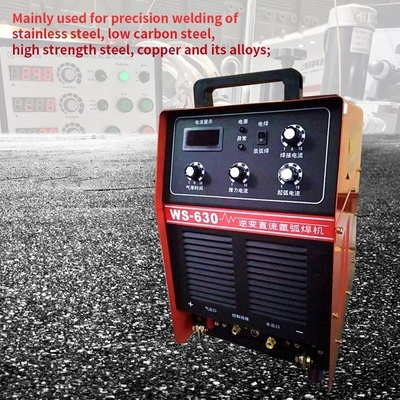

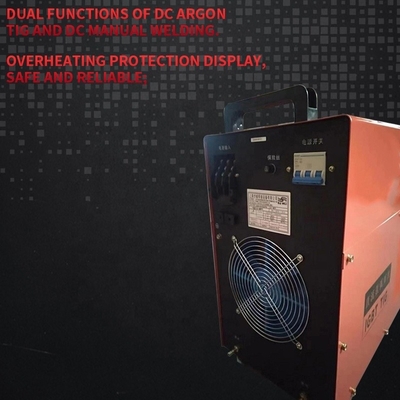

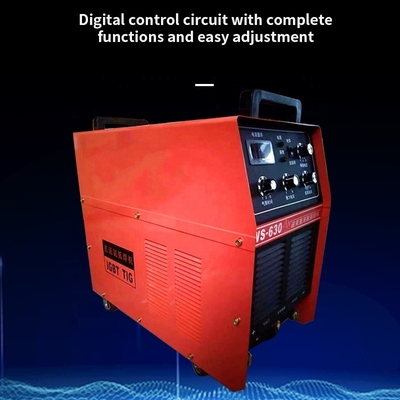

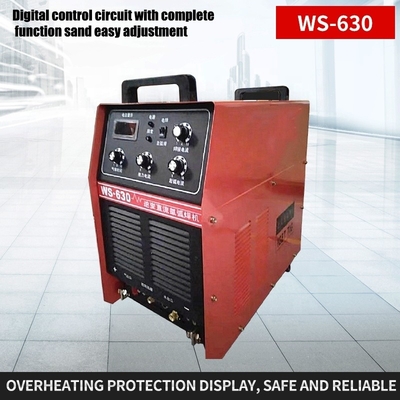

Heavy Industry Digital Pulse IGBT Inverter Arc Welding Machine 50 KG Air Cooling 380V
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $793.00/pieces 10-99 pieces |
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel, Stainless Steel, Alloy Steel | Rated Input Voltage: | 380 V |
|---|---|---|---|
| Max. Load Power Capacity: | 35KW | Output Polarity: | DC TIG |
| Rated Duty Cycle @40°C (TIG): | 60% | Rated Output Current (TIG): | 30-630A |
| Rated Output Voltage (TIG): | 35.2 V | Welding Current/Voltage Range: | Thrust Current Regulation Range: 0 ~ 200A |
| Condition: | New | Pulse Frequency: | 0.2~50HZ |
| Motor Type: | DC MOTOR | Dimensions: | 560X290X550 Mm |
| Use: | Mainly Used For Precision Welding | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Weight (KG): | 50 KG |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Shipbuilding And Maintenance, Locomotive Manufacturing And Maintenance | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Feature: | INVERTER |
| Protection Level: | IP21S | Insulation Class: | F |
| Frequency: | 50/60HZ | Rated No-Load Voltage: | 80V |
| Pulse Duty Cycle: | 1%-100% | Cooling Mode Of Power Supply: | Air Cooling |
| After-sales Service Provided: | Video Technical Support, Online Support | Supply Ability: | 1000 Unit/Units Per Month |
Product Description
Product Description
Specification
item | value |
Material / Metal Processed | Carbon steel, Stainless Steel, Alloy steel |
Rated Input Supply Voltage | 380V |
Max. Load Power Capacity | 35KW |
Output Polarity | DC TIG |
Rated Duty Cycle @40°C (TIG) | 60% |
Rated Output Current (TIG) | 30-630A |
Rated Output Voltage | 35.2V |
Thrust current regulation range | Thrust current regulation range: 0 ~ 200A |
Condition | New |
Place of Origin | China |
Brand Name | RoTrunk |
Pulse Frequency | 0.2~50HZ |
Motor Type | DC MOTOR |
Dimensions | 560X290X550 mm |
Usage | Mainly Used For Precision Welding |
Warranty | 1 Year |
Key Selling Points | Long Service Life |
Weight | 50KG |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Shipbuilding and maintenance, Locomotive manufacturing and maintenance |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Feature | INVERTER |
Protection level | IP21S |
Insulation class | F |
Frequency | 50/60HZ |
Rated No-Load Voltage | 80V |
Pulse duty cycle | 1%-100% |
Cooling Mode Of Power Supply | Air Cooling |
After-sales Service Provided | Video technical support, Online support |
Supply Ability | 500 Unit/Units per Month |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Always a pre-production sample before mass production; Always final Inspection before shipment;
4. Payment:
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
5.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
6.what services can we provide?
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
