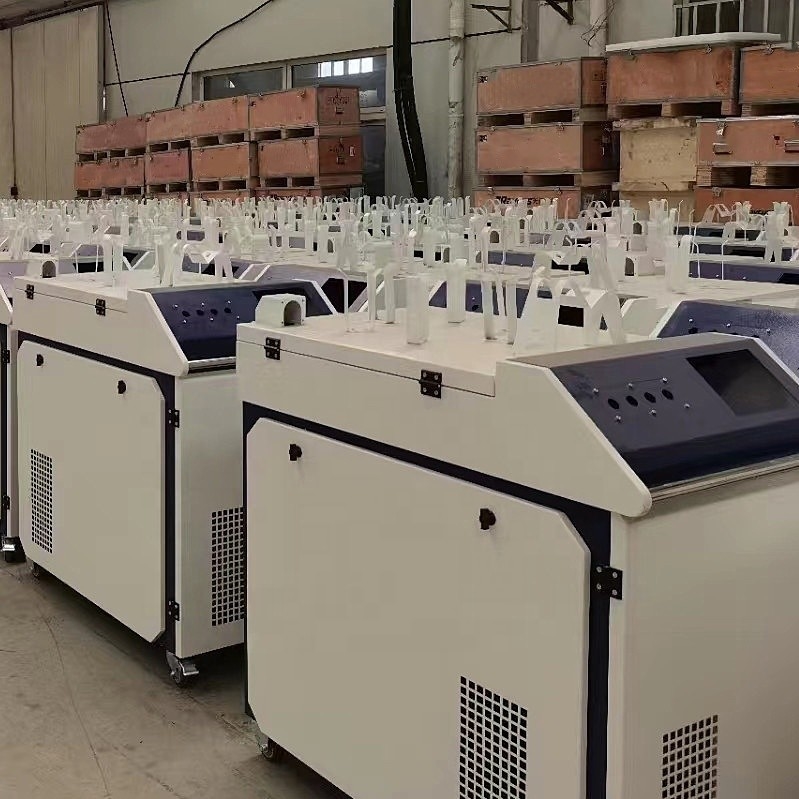

1000W Handheld Fiber Laser Welding Machine HB-W1000 for Stainless Steel and Aluminum Alloy
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Price: | $5,172.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Condition: | New | Max. Output Power: | 1000W |
|---|---|---|---|
| Use: | Heat Welding Of Materials With Laser Pulses | Single Pulse Energy: | 6KW |
| Pulse Width: | 20~50KHZ | Wavelength: | 1080±10nm |
| Focal Spot Diameter: | 50um | Dimensions: | 1000*600*1200mm |
| Warranty: | 1 Year | Laser Source Brand: | Chuangxin |
| Control System Brand: | Hongben | Weight (KG): | 30 KG |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Control Power, Laser, Wire Feeder | Conduction Type: | Optical Fiber |
| Output Mode: | StandardQBH | Working Mode: | Continuous / Pulse |
| Power Range: | 10~100% | Fiber Core Diameter: | 50~80um |
| Welding Depth (carbon Steel Plate): | 0.4~2.4mm | Welding Depth (stainless Steel Plate): | 0.4~2.5mm |
| Welding Depth (galvanized Sheet): | 0.4~2.5mm | Cooling Mode: | Circulating Water Cooling |
| After-sales Service Provided: | Video Technical Support, Online Support | ||
Product Description
Product Description
Specification
item | value |
Condition | New |
Power demand | 220V/50HZ/60A |
Max. Output Power | 1000W |
Usage | Heat welding of materials with laser pulses |
Place of Origin | China |
Brand Name | RoTrunk |
Pulse Width | 20~50KHZ |
Wavelength | 1080±10nm |
Dimensions | 1000*600*1200mm |
Warranty | 1 Year |
Laser Source Brand | Chuangxin |
Weight (KG) | 30KG |
Key Selling Points | High Productivity |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | Control power, Laser, Wire feeder |
Conduction type | Optical fiber |
Output mode | StandardQBH |
Working mode | Continuous / pulse |
Power range | 10~100% |
Fiber core diameter | 50~80um |
Welding depth (carbon steel plate) | 0.4~2.4mm |
Welding depth (stainless steel plate) | 0.4~2.5mm |
Welding depth (galvanized sheet) | 0.4~2.5mm |
Output power of indicating red light | 0.5~1mW |
Output fiber length | 10M |
Overall power | ≦6KW |
Cooling mode | Circulating water cooling |
After-sales Service Provided | Video technical support, Online support |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South America(5.00%),South Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Always a pre-production sample before mass production; Always final Inspection before shipment;
4. Payment:
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
5.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
6.what services can we provide?
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
Want to Know more details about this product
