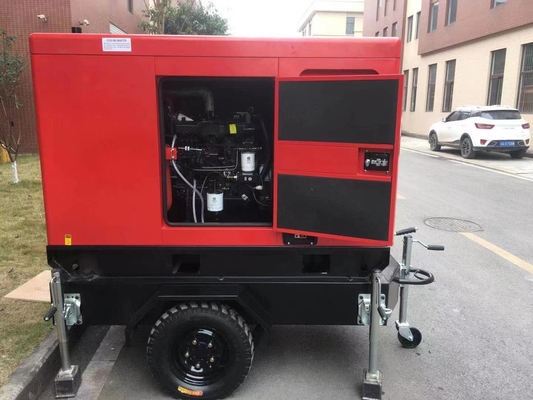

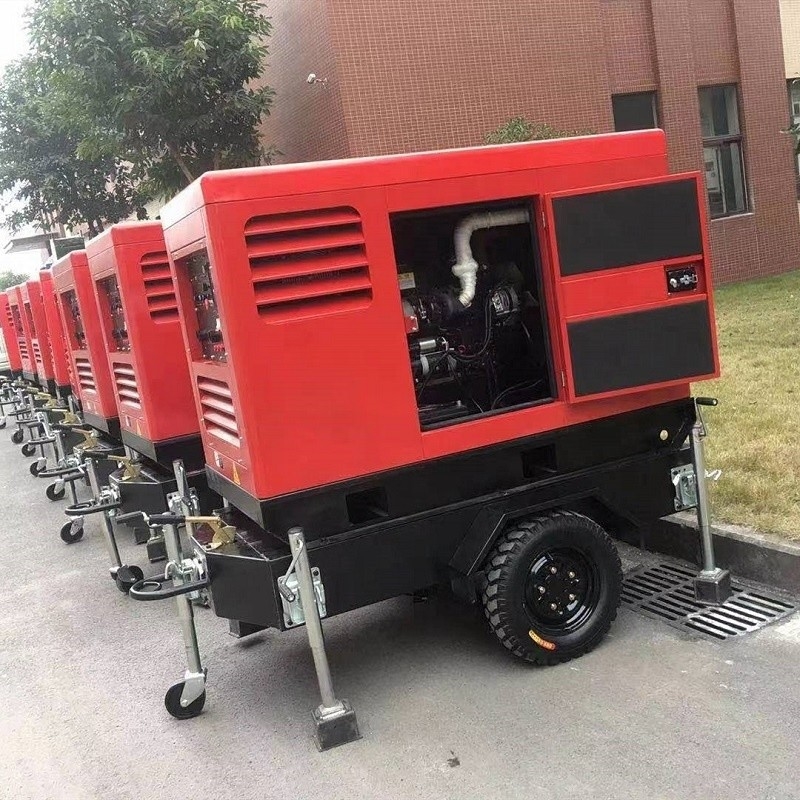

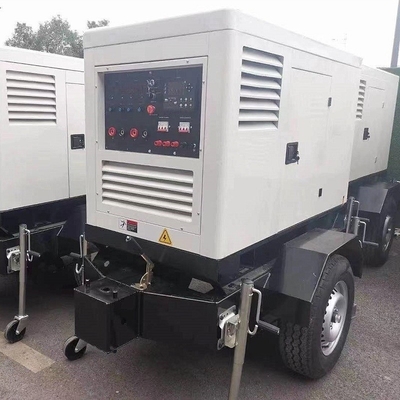

500A Diesel Silent Power Generation Electric Welding Machine RZDH500A For Generator Welding
Product Details:
| Place of Origin: | China |
| Brand Name: | RoTrunk |
Payment & Shipping Terms:
| Price: | $10,282.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Condition: | New | Type: | Submerged Arc Welding Equipment |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Arc Current: | 500A |
| Pulse Frequency: | 50/60 HZ | Pilot Arc Current: | 500A |
| Dimensions: | 1800*900*1300mm/2500*1500*1850(With Trailer) | Use: | Power Generation And Welding |
| Voltage: | 400V | Power: | Alternator Rated Power 30KW |
| Weight (KG): | 1500 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Construction Works , Energy & Mining, Other |
| Showroom Location: | None | Engine Model: | 4BT3.9-G1 |
| Engine Number Of Cylinders: | 4 | Alternator Rated Power: | 30KW |
| Alternator Rated Voltage: | 400V | Electric Welding Machine Load Voltage: | 39.2A |
| Electric Welding Machine Load Current: | 500A | Crew Tank Capacity: | 80L |
| Engine Fuel Consumption Rate: | ≤198g/KW.h | After-sales Service Provided: | Video Technical Support, Online Support |
Product Description
Product Description
Characteristic:
■The welding machine is arc welding, and the connecting wire can be extended to 30m, equipped with 3M Panasonic 500 welding gun
■Output current 500A, welding thickness 0.8-15mm
■Perfect welding performance, no need to worry about thick plate and other factors, with instant arc, and no bubble, no stick. Beautiful welding formation
■Equipped with current overcurrent protection and unit overload short circuit protection
■Anti corrosion and sunscreen cold-rolled steel plate soundbox with wave sound-absorbing cotton, good sound insulation effect ，Durable
■ LCD control, all-round monitoring and protection, easy to operate
It Can Be welded Or Used Separately As a Generator
Specification
Unit model | RZDH-500A |
Engine | |
Engine model | 4BT3.9-G1 |
Rated speed | 1500r/min |
Displacement (L) | 3.9L |
Startup mode | DC12V electric motor start |
TIype | In line, direct injection |
Air intake mode | Natural inspiration |
Stroke | 4 |
Number of cylinders | 4 |
Cylinder diameter / stroke | 102*120mm |
Fuel consumption rate | ≤198g/KW.h |
Alternator | |
Phase number | Three-phase |
Rated power | 30KW |
Rated speed | 1500r/min |
Rated frequency | 50HZ |
Rated voltage | 400V |
Rated power factor | 0.8（lagging） |
Phase number and connection method | Three phase four wire star connection |
Voltage regulation mode | AVR automatic |
Insulation grade | H |
Electric welding machine | |
Rated no-load voltage | 68V |
Rated load voltage | 39.2V |
Rated load current | 500A |
Power factor (COS φ) | 0.8 |
Crew | |
Tank capacity | 80L |
Overall dimensions | 1800*900*1300mm/2500*1500*1850（With Trailer） |
weight | 720kg/770kg（With Trailer） |
