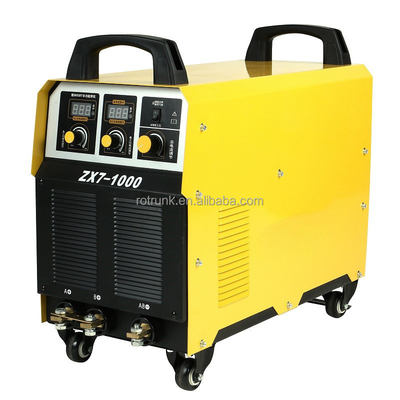

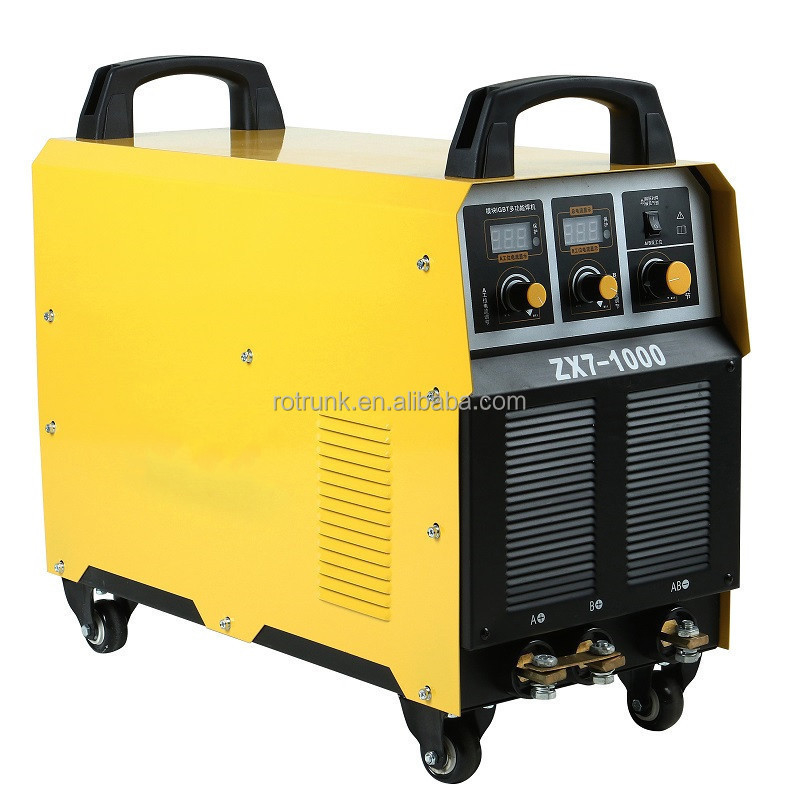

Custom 4-module Welder ZX7-1000 MMA Welding Machine 32 44 60% Duty Cycle IGBT Inverter
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Price: | $867.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Rated Input Voltage: | 3~380±10% | Rated Duty Cycle @40°C: | 60% |
|---|---|---|---|
| Max. Load Power Capacity: | 62KVA | Rated Output Voltage: | 44 V |
| Rated Output Current: | 1000A | Condition: | New |
| Pulse Frequency: | 50/60 HZ | Motor Type: | DC MOTOR |
| Dimensions: | 560X290X530 | Use: | Welding |
| Weight (KG): | 32 KG | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Feature: | INVERTER | Suitable Wire Diameter: | 3.2~12mm |
| Power Factor: | 0.92 | Efficiency: | 88% |
| Rated No-Load Voltage: | 75V | Rated Input Current: | 90A |
| Frequency: | 50/60HZ | After Warranty Service: | Video Technical Support, Online Support, Spare Parts |
| Protection Level: | IP21S | Insulation Class: | F |
Product Description
Product Description
Specification
Model | ZX7-1000 |
Size | 560X290X530 mm |
Weight | 32Kg |
Protection level | IP21S |
Insulation class | F |
Rated Voltage | 3～380±10% |
Frequency | 50/60HZ |
Rated input capacity | 62KVA |
Rated input current | 90A |
Rated output current | 1000A |
Output current regulation range | 80~1000A |
Rated output voltage | 44V |
Rated No-Load Voltage | 75V |
efficiency | 88% |
Power factor | 0.92 |
Suitable welding electrode | 3.2~12mm |
Duty Cycle | 60% |
