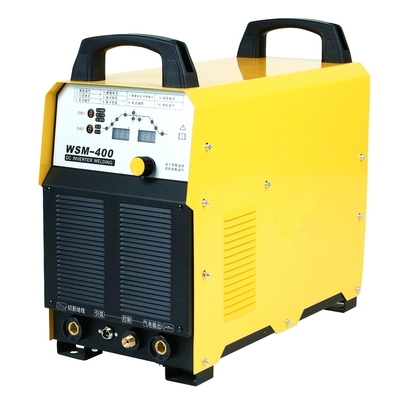

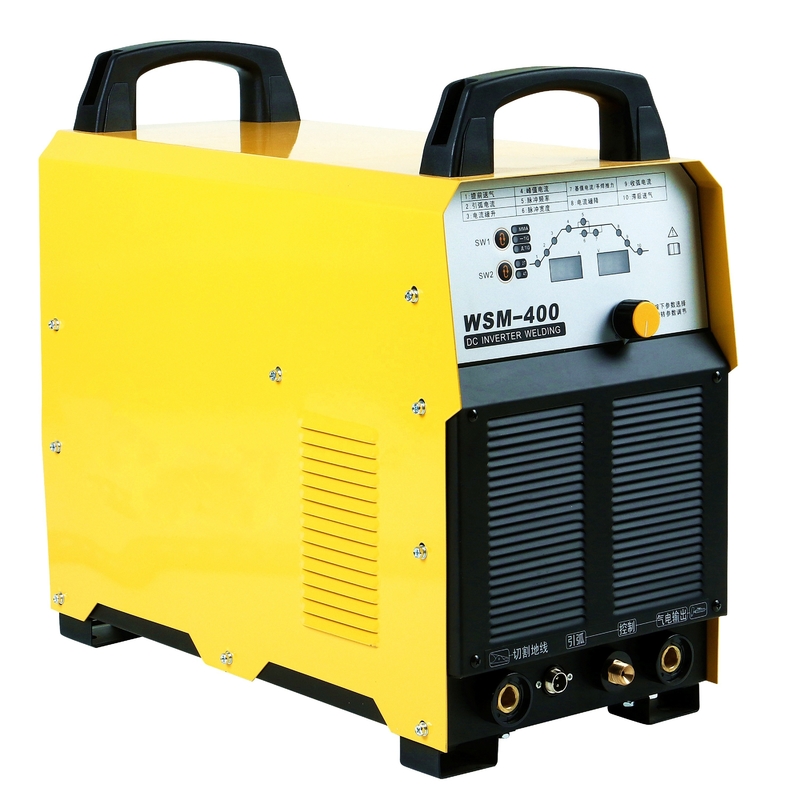

WSM-400 Pulse Argon Arc Welding Machine DC MOTOR and Inverter for Precision Welding
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pieces |
|---|---|
| Price: | $479.00/pieces 50-99 pieces |
|
Detail Information |
|||
| Material / Metal Processed: | Carbon Steel, Stainless Steel | Rated Input Voltage: | 380 V |
|---|---|---|---|
| Max. Load Power Capacity: | 18KVA | Output Polarity: | DC TIG |
| Rated Duty Cycle @40°C (TIG): | 60% | Rated Output Current (TIG): | 400A |
| Rated Output Voltage (TIG): | 44 V | Condition: | New |
| Pulse Frequency: | 0.2~50HZ | Motor Type: | DC MOTOR |
| Dimensions: | 560X290X530 Mm | Use: | Precision Welding |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Weight (KG): | 35 KG | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Energy & Mining |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Feature: | INVERTER | Frequency: | 50/60HZ |
| Rated Input Current: | 40A | Rated Output Voltage: | 36V |
| Thrust Current Regulation Range: | 0 ~ 200A | Rated No-Load Voltage: | 75V |
| Efficiency: | 88% | Cooling Mode Of Power Supply: | Air Cooling |
| After-sales Service Provided: | Video Technical Support, Online Support | ||
Product Description
Product Description
Specification
item | value |
Warranty | 1 years |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | RoTrunk |
Model Number | WSM-400 |
Welding Process | TIG |
For Material Type | Steel, Stainless Steel, Copper Alloys |
Phase | 3 |
Rated Output Current | Output current regulation range 10~400A |
Weight | 35kg |
Dimension (L x W x H) | 560*290*530 mm |
Rated Voltage | 380V |
Frequency | 50/60HZ |
Rated input capacity | 18KVA |
Rated input current | 40A |
Rated output voltage | 44V |
Output current regulation range | 10~400A |
Thrust current regulation range | 0 ~ 200A |
Rated No-Load Voltage | 75V |
Pulse frequency | 0.2~50HZ |
efficiency | 88% |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South Asia(5.00%),South America(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
We are based in Shanghai, China, start from 2015,sell to Eastern Asia(30.00%),Mid East(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),South Asia(5.00%),South America(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 5-10 people in our office.
2. MOQ
MOQ might be different for different items you choose，and 1-5 units could be acceptable if you requested for negotiation.
3.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Always a pre-production sample before mass production; Always final Inspection before shipment;
4. Payment:
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
TT payment would be preferable. Normally we prefer T/T with 30% deposit and the balance before shipment. L/C might be accepted is contract amount is up to USD 20000. Western Union and Paypal is acceptable.
5.Sample Issue
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
Once price and order confirmed, we will be glad to send you the required samples for acceptance.
6.what services can we provide?
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
a. There would be English manual or guide video that show you how to use machine.
b. If any problem with machine after received，parts can be provided within warranty period.
c. Video technical support, Online support.
d. We usually quoted within 24 hours and if the inquiry is very urgent, you can call us directly or leave message on Alibaba
system manager, anyway we will try our best to help with the inquiry.
